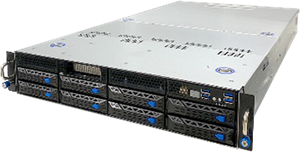

| 外型尺寸/高度 | 2U 機架式伺服器 |
| 處理器支援 | 2 x Socket P+ (LGA 4189) ,3rd Gen Intel® Xeon® Scalable Processors Family(205W) |
| CPU支援清單 | https://www.asus.com/tw/Networking-IoT-Servers/Servers/Rack-Servers/ESC4000-E10/HelpDesk_CPU/ |
| 晶片組 | Intel® C621A Chipset |
| 記憶體 | 總 Slots 數 : 16 (6-channel per CPU, 8 DIMM per CPU)
總容量 : 最大至 2048GB LRDIMM
記憶體大小: 64G ,32GB, 16GB,RDIMM /64GB,
32GB LRDIMM / 128GB, 64GB LR-DIMM 3DS
記憶體類型 : DDR4 3200/2933 RDIMM/LR-DIMM/LR-DIMM 3DS |
| 磁碟機槽 | 前擴充插槽： 8 x 3.5 吋或 2.5 吋熱抽換儲存裝置機槽
(6x SATA/SAS + 2x SATA/SAS/NVMe)
1 x M.2 Socket 3, up to 2280 type (SATA mode & PCIe Gen3 x4 link) |
| 擴充插槽 | 4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or
( 8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards )
2 x PCIe x16 slots (Gen4 x16 link, LP,HL)
1 x PCI-E x8 (internal HBA/RAID card) |
| RAID 支援 | 需選購Raid Card: ASUS PIKE II 3008 SAS RAID card 或
ASUS PIKE II 3108 8-port SAS HW RAID card |
| 附屬儲存裝置 | 無光碟機 |
| 網路介面 | 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN |
| 前面板I/O | 1 x 80 port
4 x USB 3.2 ports |
| 後面板I/O | 2 x USB 3.2 port
1 x VGA port
1 x RJ-45 Mgmt LAN port
2 x RJ-45 GbE LAN ports |
| 電源 | 1+1 Redundant 1600W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac,12.9A/9.5A,50-60Hz
1+1 Redundant
2200W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz |
| 管理工具 | ASMB10-iKVM for KVM-over-IP (遠端管理/BMC AST2600)
ASUS Control Center（選購）:
https://asuscontrolcenter.asus.com/beta/#/ |
| 保固 | 標準: 3年零件/人工/到府服務 ( 5x8 ) . (另可專案加購升級其他保固條件務) |
| 作業系統相容性列表 | 請參照: https://www.asus.com/event/Server/OS_support_list/OS.html |
