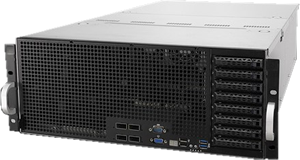

| 外型尺寸/高度 | 4U 機架式伺服器 |
| 處理器支援 | 2 x Socket P (LGA 3647) Intel® Xeon® Scalable Processors Family |
| CPU支援清單 | https://www.asus.com/tw/Commercial-Servers-Workstations/ESC8000-G4/HelpDesk_CPU/ |
| 晶片組 | Intel® Lewisburg PCH C621 |
| 記憶體 | 總 Slots 數 : 24 (6-channel per CPU, 12 DIMM per CPU)
總容量 : 最大至 3072GB RDIMM
記憶體大小: 64G ,32GB, 16GB,RDIMM /64GB, 32GB LRDIMM / 128GB, 64GB LR-DIMM 3DS
記憶體類型 : DDR4 2933/2666 RDIMM/LR-DIMM/LR-DIMM 3DS
|
| 磁碟機槽 | 前擴充插槽： 8x 2.5 吋熱抽換儲存裝置機槽 (6x SATA/SAS + 2x SATA/SAS/NVMe) |
| 擴充插槽 | 8 x PCI-E x16 (Gen3 x16 link), Full-length/Full-height:
Rear:
2 x PCI-E x16 (Gen3 x 16 link),Half-length/Low-profile:
(1 from CPU1,1 from CPU2) |
| RAID 支援 | Intel® Rapid Storage Technology Enterprise(RSTe)
(For Linux/Windows)(Support Software RAID 0, 1, 5, 10 )
選購Intel®VROC (For Linux/Windows) (Support Software RAID 0/1/5/10 )
需選購Raid Card: ASUS PIKE II 3008 SAS RAID card 或
ASUS PIKE II 3108 8-port SAS HW RAID card |
| 附屬儲存裝置 | 無光碟機 |
| 網路介面 | 1 x Dual Port Intel X550-AT2 10GbE LAN controller + 1 x Mgmt LAN |
| 前面板I/O | 2 x USB 3.0 ports
2 x USB 2.0 ports
1 x VGA port
1 x COM port |
| ESC8000 G4/10G
後面板I/O | 2 x RJ-45 10 GbE LAN ports
1 x RJ-45 Mgmt LAN port |
| 電源 | 2+1 Redundant 2200W 80PLUS Platinum Power Supply
Rating: 100-127/200-240 Vac, 12.9/9.5 A (for each inlet), 47-63 Hz, Class I |
| 管理工具 | 內建 ASMB9-iKVM，可透過 IP 位置使用 KVM
ASUS Control Center（選購）:
https://asuscontrolcenter.asus.com/beta/#/ |
| 保固 | 標準: 3年零件/人工/到府服務 ( 5x8 ) . (另可專案加購升級其他保固條件) |
| 作業系統相容性列表 | 請參照: https://www.asus.com/event/Server/OS_support_list/OS.html |
| |
