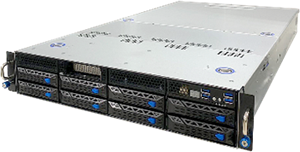

外型尺寸/高度 | 2U 機架式伺服器 |
處理器支援 | AMD EPYC™ 7002 Series |
CPU支援清單 | |
晶片組 | 1 x Socket SP3 (LGA 4094) |
記憶體 | 總 Slots 數 : 8 (8-channel) 總容量 : 最大至 1024GB RDIMM 記憶體大小:128GB, 64GB, 32GB, 16GB 記憶體類型 :單通道 DDR4 3200/2933 RDIMM |
磁碟機槽 | 前擴充插槽: 8x 3.5 吋或 2.5 吋熱抽換儲存裝置機槽 (up to 4 x NVMe/SATA/SAS + 4 x SATA/SAS) (default:2*NVMe support) |
擴充插槽 | Total PCI-E Gen4 Slots: 8+3 Full-length/Full-height :4* PCI-E 4.0 x16 link for double-deck GPU Cards or 8*PCI-E 4.0 at x16 link with PLX SKU Board for single-deck GPU Cards (此為特規機 請申請專案規劃) Rear: (x32 link) :2 * PCI-E 4.0 x16 for butterfly riser card (Half-length/Low-profile) Front: (x8 link) :1 * PCI-E 4.0 x8 for internal HBA/RAID card |
RAID 支援 | SATA 控制器: CPU Integrated 須加購 ASUS PIKE II 3108 8-port SAS HW RAID card 無光碟機 |
網路介面 | 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN |
前面板I/O | 1 x 80 por 2 x USB 3.2 Gen1 ports + 2 x USB 3.2 Gen1 ports |
後面板I/O | 2 x USB 3.2 Gen1 port 1 x VGA port 1 x RJ-45 Mgmt LAN port 2 x RJ-45 GbE LAN ports |
電源 | 1+1 Redundant 1600W 80 PLUS Platinum Power Supply 100-127Vac,13A,1000W 200-240Vac,9.5A, 1600W |
管理工具 | 內建 ASMB9-iKVM,可透過 IP 位置使用 KVM ASUS Control Center(選購): https://asuscontrolcenter.asus.com/beta/#/ |
保固 | 標準: 3年零件/人工/到府服務 ( 5x8 ) . (另可專案加購升級其他保固條件) |
作業系統相容性列表 | 請參照: https://www.asus.com/event/Server/OS_support_list/OS.html |
| |
